AXIS 12
AXIS 12 @ ACTIVE 1000-WATT 12” 2-WAY COAXIAL SPEAKER SYSTEM WITH DIGITAL CONTROL
The Axis 12 is a High-Output, Compact Loudspeaker System that integrates 1000-Watt Class-D Bi-amplification with precision internal DSP and a phase-coherent 12” coaxial driver for the most demanding portable or installed music playback applications. Engineered to deliver high sound pressure levels with minimal acoustic phase error, the coaxial driver design propagates its output in a seamless, uninterrupted time envelope, markedly improving definition and clarity.
- Power System: RMS 1000W / PEAK 2000W with DSP processor
- Frequency Response: (-10dB) 38Hz-20KHz
- Maximum SPL @1m calculated: 128dB (from driver sensitivity and amplifier power)
- Coverage: 90° x conical
- Transducer Low: Woofer, 2.5" voice coil
- Transducer High: 1" Exit Compression Driver, 1.75" Voice Coil

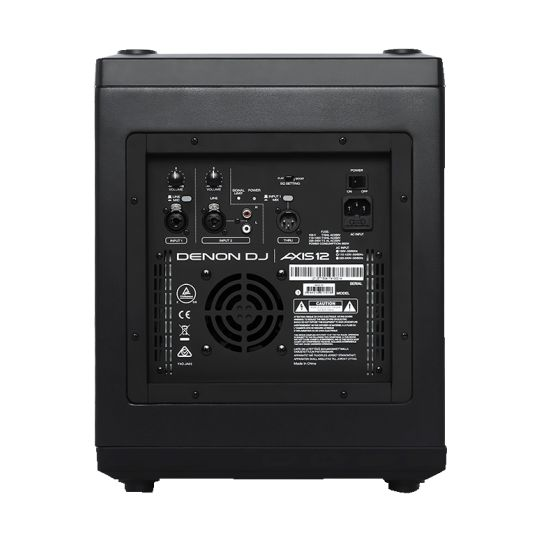

- Active Crossover: Input 1 (Line/MIC)-Combo/Input 2-Combo and RCA / THRU-XLR balanced
- Connector: Input 1 (Line / MIC)-Combo / Input 2-Combo and RCA / THRU-XLR balanced
- Input Level: Line 0dBu / MIC-38dBu
- External Control: Volume Control / Power ON with green LED / clip limiter with red LED
- Digital Presets: User-Flat
- Electronic Protections: Thermal / Convection-Fan / Overload / Digital LIM. / Compressor
- Power Supply: 100-120V AC, 50-60Hz / 220-240V AC, 50-60Hz, Switching Power Mode.
- Cabinet: Trapezoidal plywood cabinet & top and bottom ABS (High-strength)
- Mount: resistant black paint, metal grille, One standard pole-mount plus one plastic handle & 50°
- Dimension (HxWxD): 423 x 388 x 365mm (16.7" x 15.3"x 14.4")
- Weight: (Approx.) 16.99 kg / 37.46 lb
- High-power 1000-watt 2-way active speaker system for live and playback applications
- Class D digital bi-amplification for massive power, light weight and reliability
- Precision coaxial driver delivers optimized music performance in a compact enclosure
- Long-excursion 12” woofer delivers deep, punchy bass and high acoustic output
- Coaxially-mounted 1.75” high-frequency compression driver with 1” acoustic aperture provides extended HF response
- Coaxial design reduces cabinet height by over 30% vs. conventional speakers
- Coincident LF/HF driver mounting ensures time/phase coherent output
- Uniform horizontal and vertical dispersion delivers optimum sound coverage
- Internal DSP controls speaker’s internal 5-band parametric EQ
- Includes: standard pole-mount threaded insert, built-in handles
